Most compact folding bike in the WORLD
MADE in GERMANY

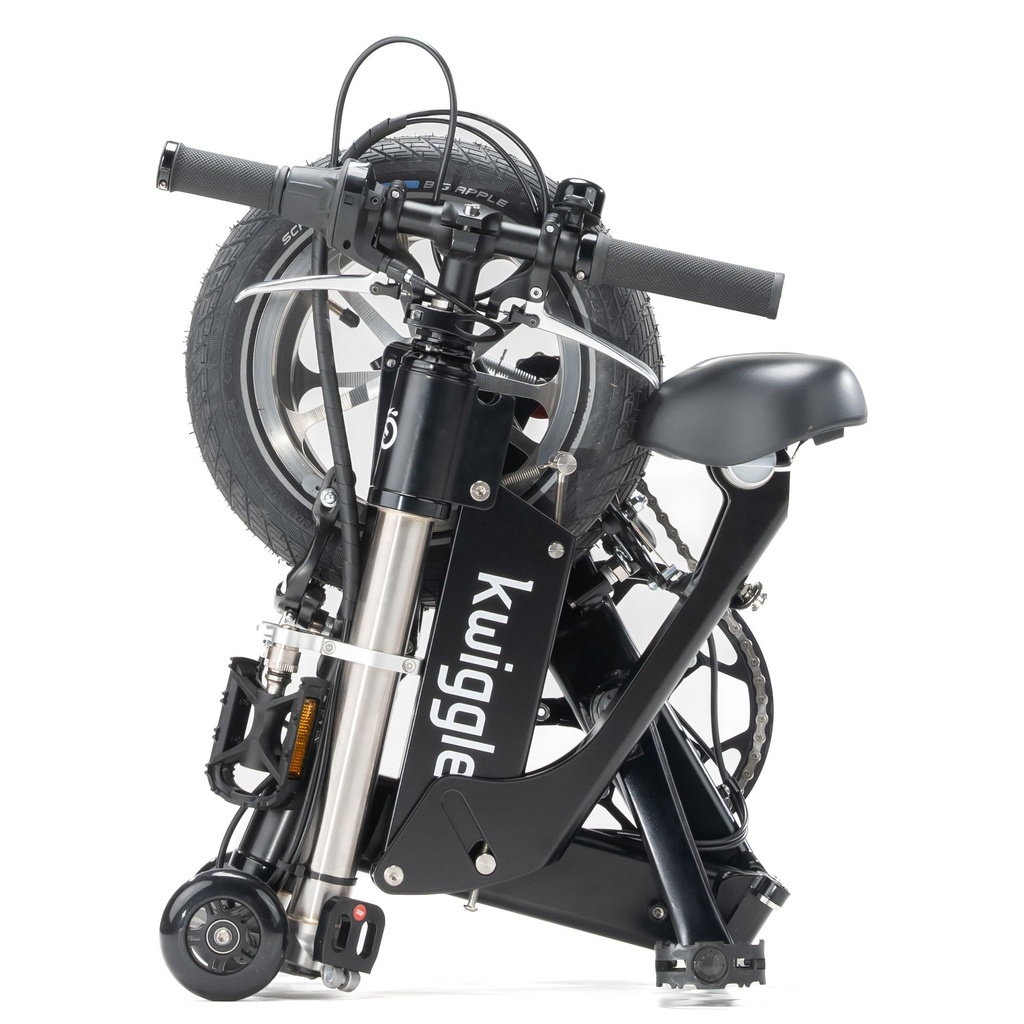

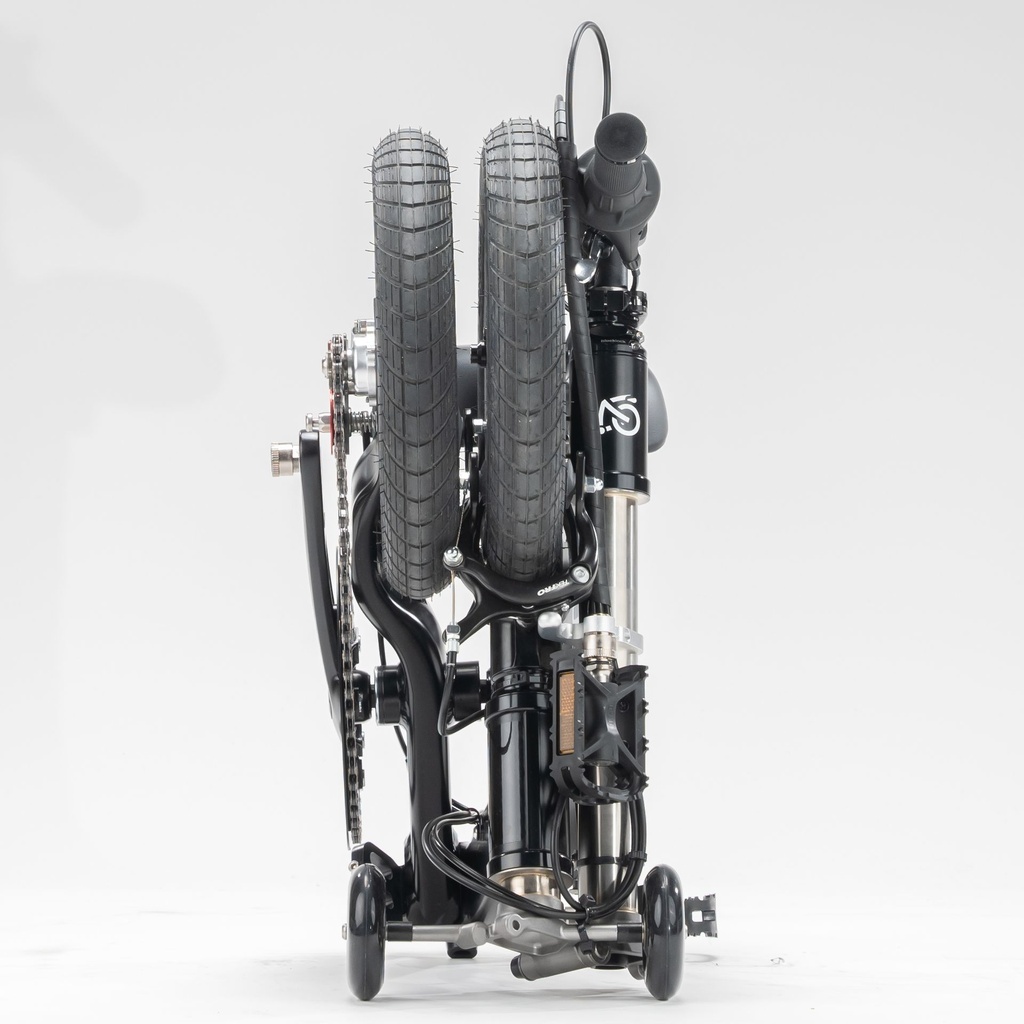

Folded 55x40x25cm |
20-30 km/h |
9.5-10.5 kg | Folded in 10 s |
Why the Kwiggle is worth its price .... |
|

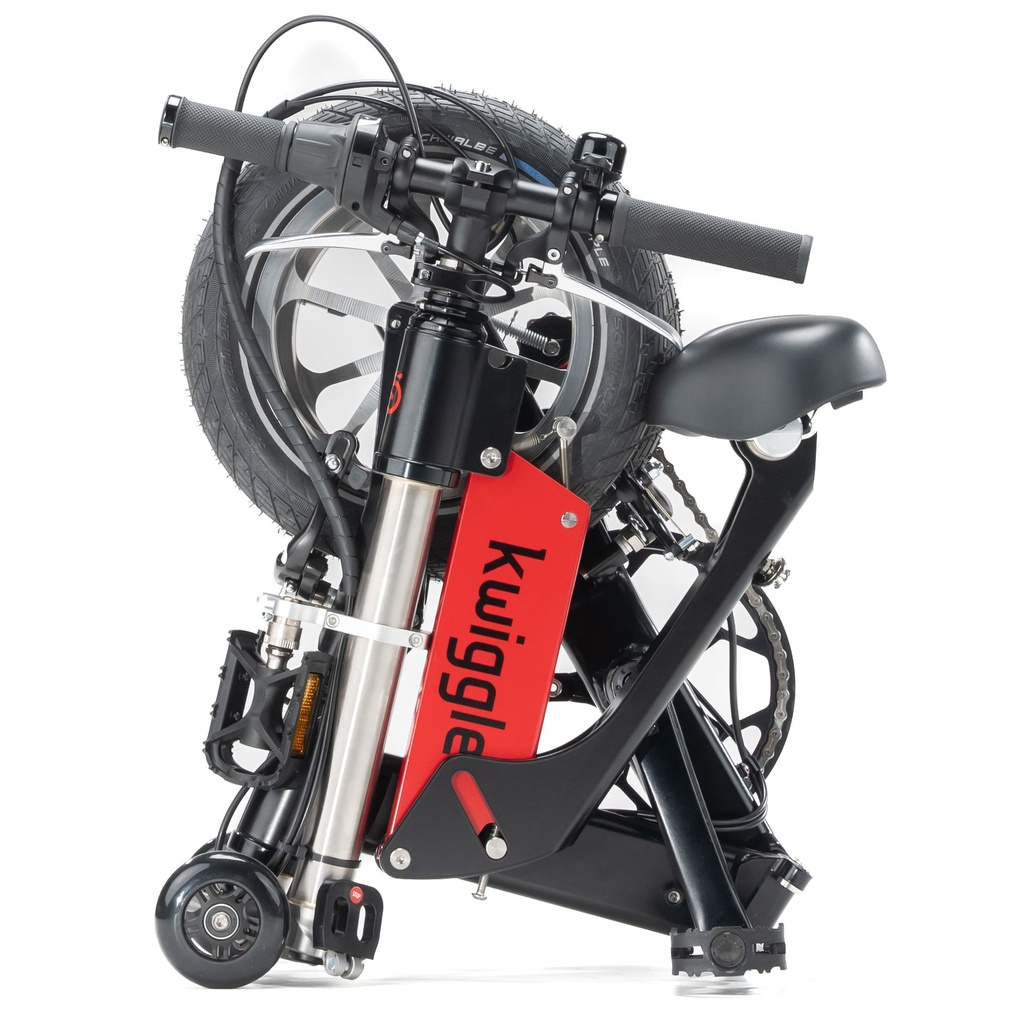

Kwiggle®flash ultracompact folding bike
Superlative folding bike - Made in Germany
This folding bike beats all records: super compact, ultra light, super fast - unbeatable price-performance ratio
| Department: | Men's, Women's, Unisex |
| Development: | 3-speed: 4.1-5.9 m/rev, 6-speed: 3.1-7.2 m/rev |
| Body size: | 4'5'' - 6'5'' |
| Lighting, if selected: | Front light: IXON Core 50 (B+M), Rear light: Cateye NanoG, each rechargeable with micro USB. |
| Folding size: | 21.5 x 15.7 x 10.2 (3-speed) / 11.0 (6-speed) inch |
| Chain: | Connex 8Sx |
| Total weight: | up to 220 Lbs. |
| Pedal: | MKS UX-D Ezy |
| Wheel size: | 12 inch |
| Tires: | Schwalbe Big Apple with reflective stripes, special version with increased load capacity |
| Rims: | Wrought aluminum alloy, made from one piece, very good corrosion resistance |
| Brakes and brake levers: | Tektro side-pull brake or identical |
| mudguards: | SKS PET |
| Saddle: | Comfort saddle |
| Grips: | straight grips |
| Age group: | adults, seniors, teenagers, children |
| frame material: | stainless steel, high strength aluminum |
| Suspension type: | Full suspension via spring steel tube |
Terms and conditions:
60-day money-back guarantee for EU-customers
THE WORLD'S MOST COMPACT FOLDING BIKE
-
Hand luggage size (55*40*25 cm)
-
Maximum stability – MADE in GERMANY
» The highest precision and material quality » DIN ISO certified
-
effortlessly 25 km/h with the folding bike,
without much pedaling -

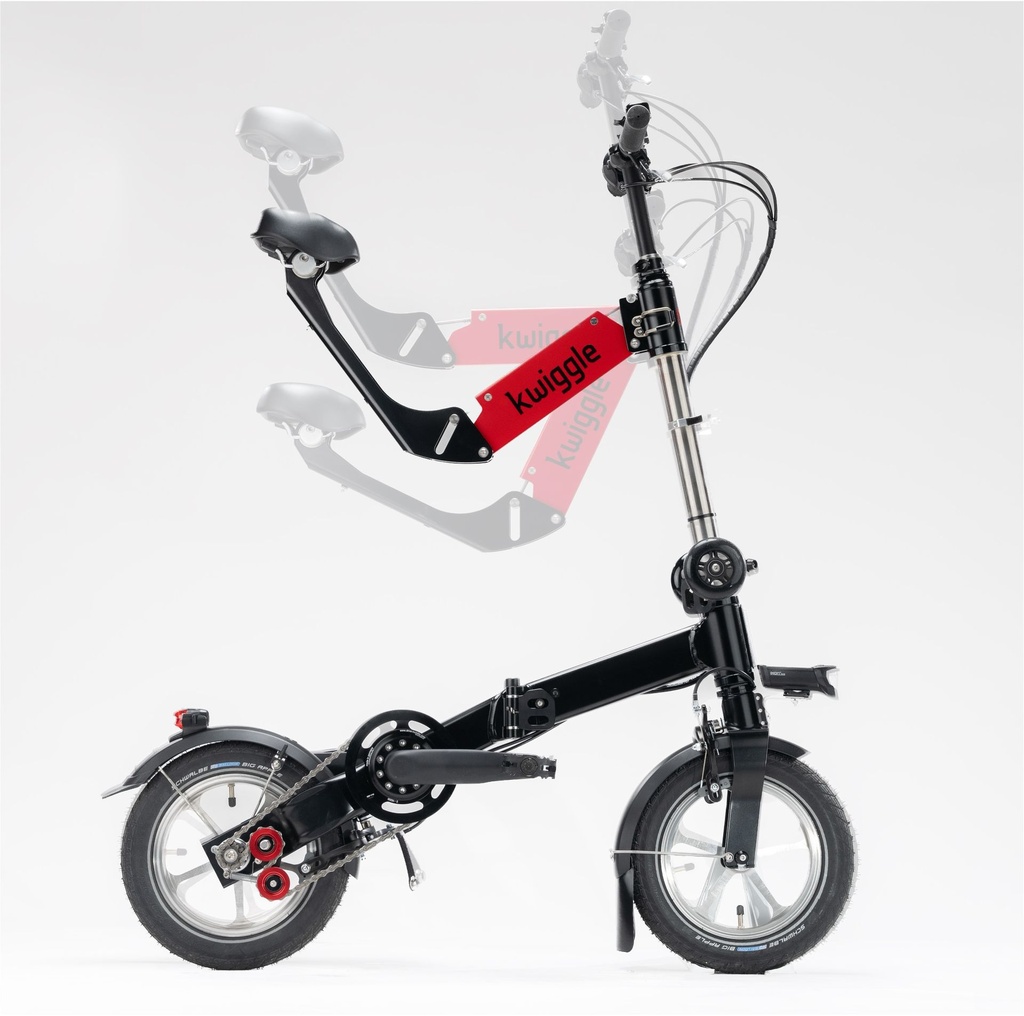

super-light 10 kg for all heights (1,35 - 1,95m)
-
only 10 seconds to fold and unfold
» Fits under seats on buses and trains » The only one that doesn't get in the way in the aisle » Leaves plenty of space in the trunk
hand luggage size
Decisive 40-80% more compact
Take it with you, carefree
The 10-kilogram Kwiggle is the only one that fits under any seat and leaves the aisle clear for other passengers.
The only thing
ULTRA COMPACT
scompartment-sized
Safely stored in the locker.
In the locker room, at the gym, at the storen.
Kwiggle does not interfere in the train.
The only one that fits under the seat or in the luggage rack.
Can even get on the bus
There's no room on the bus for folding bikes, but there's always room for a Kwiggle.
Maximum stability and premium quality
The strongest V4A stainless steel in the world: it can spring and bear the highest loads at the same time.
Unrivaled wear resistance of the joints and drive components.
Indestructible soldered joints of joints and pipes.

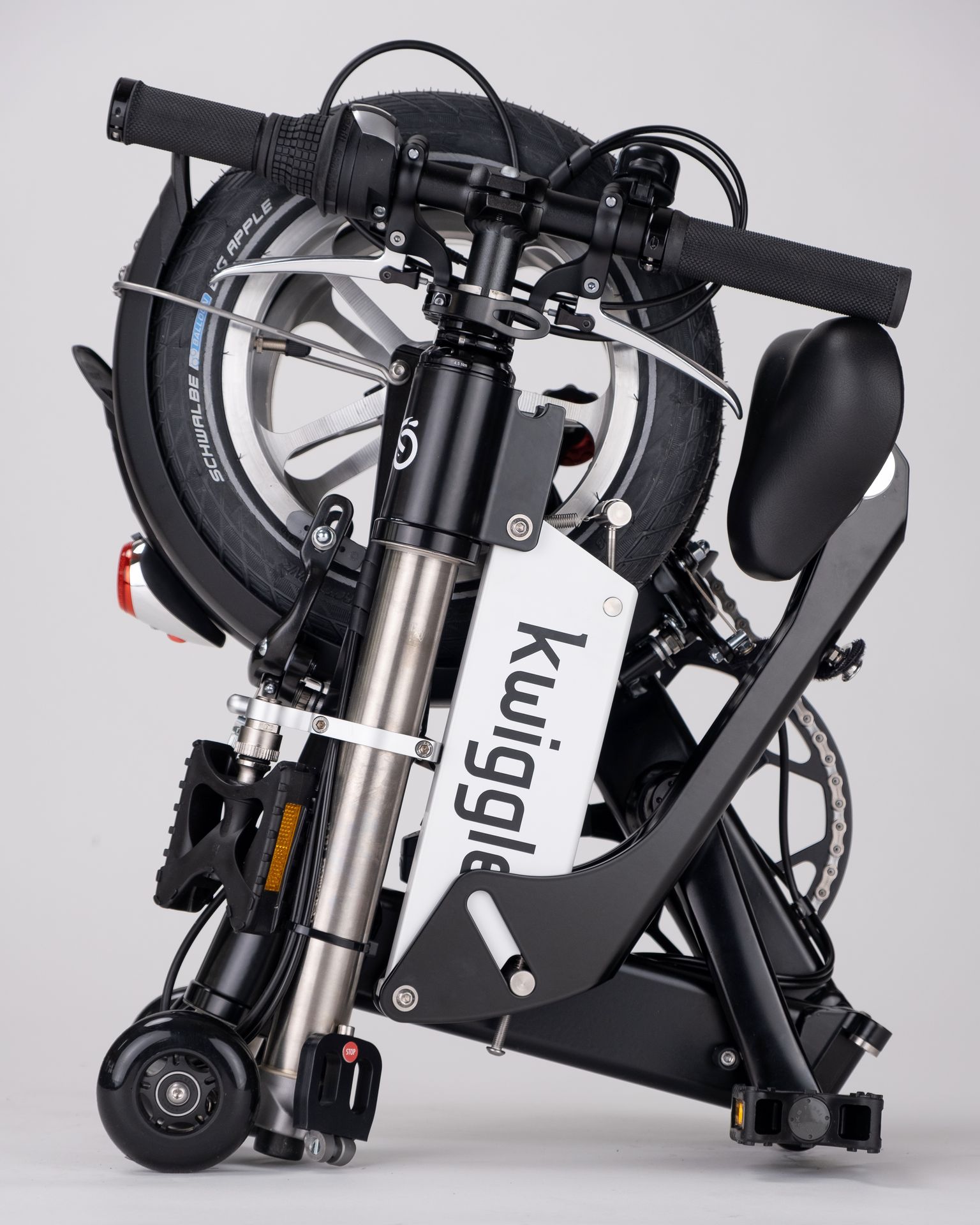

Our flash models show this off to particular advantage: an individual splash of color in a sophisticated black look.
It pays to read!
Long-term tests by independent bicycle experts:
Translated into all languages.
Our 12-inch wheels: the optimum for the city
We tested everything from 8-inch to 10-inch to 20-inch wheels during the development of the Kwiggle.
We found that 12-inch wheels offer the best compromise between riding comfort and maneuverability.
Even though millions of people ride 8-inch or 10-inch e-scooters through cities, we wanted to achieve even more riding comfort and safety.
Although 16- and 20-inch wheels have a slight advantage in terms of comfort, this is clearly at the expense of maneuverability – which is particularly important in the busy city. In order to achieve a comparable level of comfort with 12-inch wheels, we deliberately chose wide tires with a width of 50mm so that you can ride just as comfortably on uneven surfaces as you would with larger wheels.
The result: an amazingly comfortable ride!
By the way: our patented drive ensures that you don't have to pedal faster with our 12-inch wheels than with larger wheels.
The new lightness of cycling
You ride a folding bike better upright.
If you ride in an upright position, you need fewer gears. Why? The smaller gears are for riding uphill. If you ride uphill while standing, you shift into a heavier gear and let your weight do the work. That's why the upright Kwiggler can climb the same hills with just three gears that another folding bike with six gears needs.
When riding a conventional bike, the upper body is constantly at an angle. This puts strain on the back, shoulders and wrists.
When riding in the upright Kwiggle position, however, all the muscles remain relaxed in motion, the joints are relieved and in the stand-sit position you put more pressure on the pedal and effortlessly ride faster than with ordinary folding bikes.
HANDMADE in GERMANY
After more than 10 years of development and countless long-term stress tests, experienced engineers and technicians, led by mechanical engineer Karsten Bettin, succeeded in bringing the Kwiggle to market. The superior folding bike concept quickly found great appeal. With the help of a strong investor and financier, the Lower Saxony development bank, NBank, KwiggleBike GmbH has then expanded worldwide in the last four years. Kwiggles are now being ridden on all continents. At the Hannover site, specialists manufacture and assemble each individual Kwiggle by hand! Intensive quality assurance always takes place before shipping. The result: a level of material and manufacturing quality that is second to none – and thousands of satisfied customers.
Useful features
Folding bike lightweight
Take luggage with you
Folding bike makes light work of transporting luggage: Ortlieb, VAUDE bags or wheeled suitcases. Backpacks are also comfortable to carry in an upright position.
Folding-bike-trolley
You do not have to carry the Kwiggle. This folding bike can be conveniently pulled like a trolley and parked anywhere: Worldwide unique!
FOLDING BIKE OF SUPERLATIVE
The only folding bikes that you can perfectly store in the trunk:
For the city trip, the family outing, for shopping.
Mobility that is simply always and everywhere available.
What our customers say
As a commuter, I have tried many folding bikes. The Kwiggle is the only one that doesn't annoy anyone on the tram because it doesn't get in the way in the aisle, but fits under the seat. The best “commuter bike”.
Claudia S. - Cologne
The Kwiggle is an all-rounder. I use it in the city in combination with public transport, but also for bike rides, because it doesn't give me back
Hendrik B. - Braunschweig
I've been riding the Kwiggle for two years now. Well done to the developers: the bike is in a class of its own. Everything works like it did at the beginning – and I'm no lightweight ;-)...!
Thorsten W. - Munich
When you consider that a Kwiggle costs about the same as a smartphone, this record wheel with its great utility has to be considered a bargain!
Thomas M. - Berlin
I bought the Kwiggle based on the article in the newspaper WELT. I can only confirm the author's opinion.
Vivien M. - Frankfurt/M.
Since I got the Kwiggle, I usually leave my car at home and take the bus or train. I simply place the wheel under the seat. That way, it doesn't get in the way of anyone standing in the aisle. And I don't get any dirty looks!
Felix H. - Leipzig
The Kwiggle is the only folding bike that is really easy to carry: it weighs less than 10 kg when folded and makes a handy package that can be stored anywhere. I couldn't imagine my daily life in the city without it!
Anja S. - Milan/Italy
The Kwiggle's appearance confused me at first. I doubted its stability. But I was way off: this is high-level engineering combined with the best materials. Super value for money.
Michael M. - Atlanta/USA
The transportation revolution is here. Kwiggle + train instead of car. The Kwiggle fits under every seat in the ICE!
Mareike M. - Hamburg
Folding bike EXTREME
We go on extreme tours with this folding bike. Doctors and physiotherapists tell us:
“Kwigglen uses all of your muscles optimally. You can ride for a very long time without getting tired.”
We therefore covered hundreds of kilometers in one day. We took part in road bike races. We conquered the steepest Alpine passes with this folding bike. And we made comparisons between Kwiggle and road bikes on mountains.
Take a look at our insights from the new world of folding bikes.
-
Hand luggage size (55*40*25 cm)
-
effortlessly 25 km/h with the folding bike,
without much pedaling -
super-light 10 kg for all heights (1,35 - 1,95m)
-
MADE in GERMANY
» fits under seats in bus and train
» is the only one that does not interfere in the aisle
» leaves a lot of space in the trunk.
" Highest precision and material quality
" DIN-ISO-tested stability.
THE FRAME
We only use high-strength stainless steel and 7000-series aluminum for the frame of the Kwiggle.
-
The stainless steel steering tube and high-quality silver-brazed stainless steel joints bring springy comfort and ensures long-term stability.
-
All moving parts of the precision folding joints are equipped with extremely high quality wear protection.This ensures a robust, exact closing joint, and with only one fold. This is unique and patented.
-
The lower frame parts have tab-like weld seams for the best possible stress distribution, manufactured with industrial robots in consistently outstanding MIG quality.
-
The rear frame section is particularly elegant and light and constructed as a single swingarm.
-
The fork is made from only one piece. This makes it light and strong at the same time.
-
We use sealed heavy duty 1.5 inch industrial angular contact ball bearings as the steering head bearings.

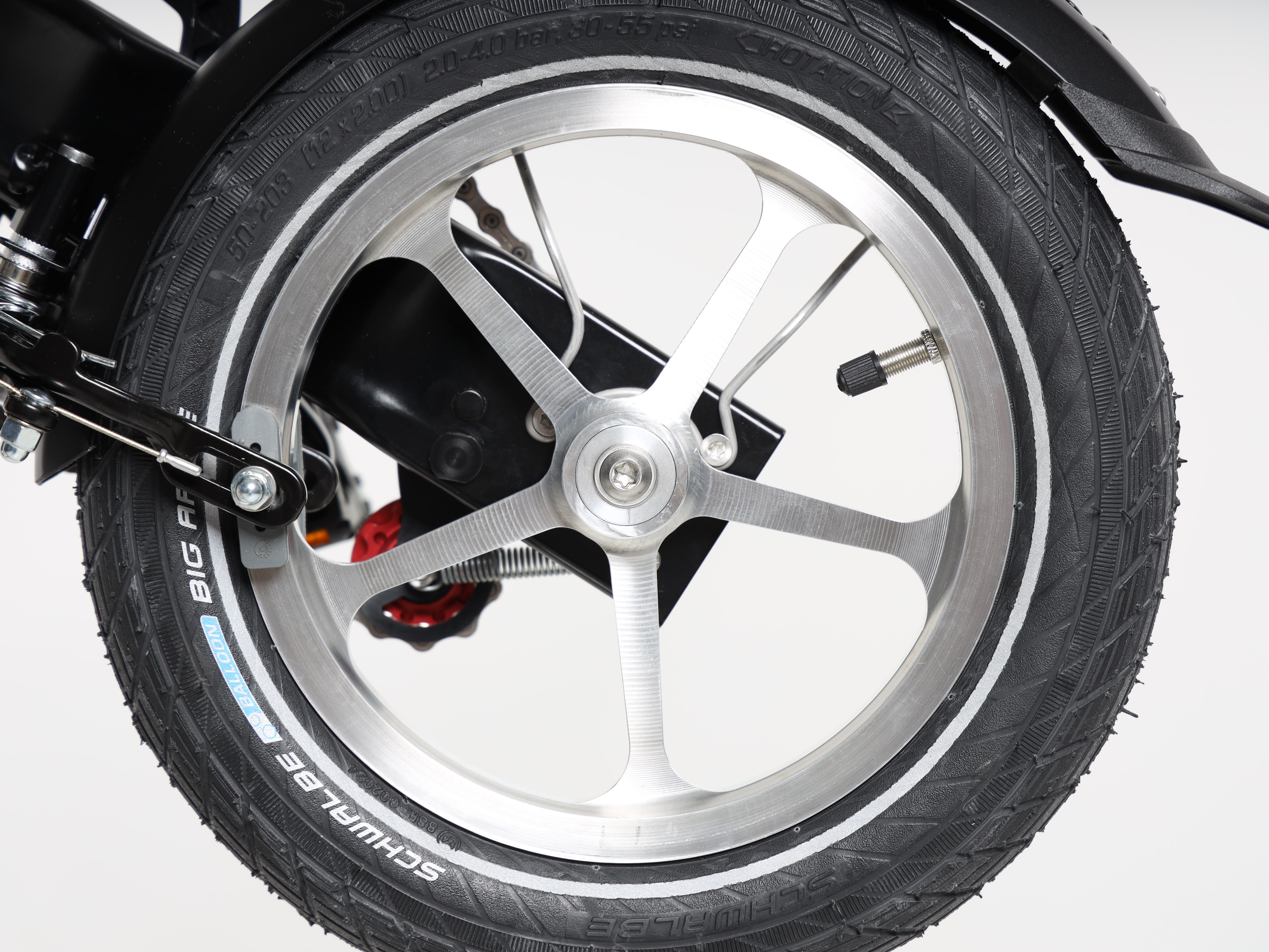

THE RIMS
In a special manufacturing process, the Kwiggle rims are manufactured from a single piece of wrought aluminum alloy, unique in the world, with outstanding properties:
-
light and rigid at the same time
-
wear-resistant even after many thousands of kilometers
-
highly corrosion resistant
-
highest running accuracy
-
polished noble look
This precision and robustness allows smooth running even at high speeds of 60 km/h (37 mph).
THE DRIVE
For maintenance, we recommend the oil and grease-free chain lubricant "DryFluids". High ceramic content provides a pleasant pedaling feel and significantly less dirt.
THE 6-SPEED SPEEDDRIVE
- Gear ratio 1:1.65
- Crank length 170 mm
- 5-arm, bolt circle 104mm
- 1 chainring with 34 Z
- Development 3.1 - 7.2 m
- with integrated chain guard, 7075-T6 aluminum
With the shift bars on the crank, it is now comfortable to shift. Our reason to use the speeddrive now also in the Kwiggle.
THE CRANK FOR 3-SPEED
- Miche Team CPT
- Crank length 170 mm
- 5-arm, bolt circle 110mm
- 1 chainring with 46 Z
- with integrated chain guard, 7075-T6 aluminum
Chain wheel and chain guard are made of one piece, which results in a very noble look.

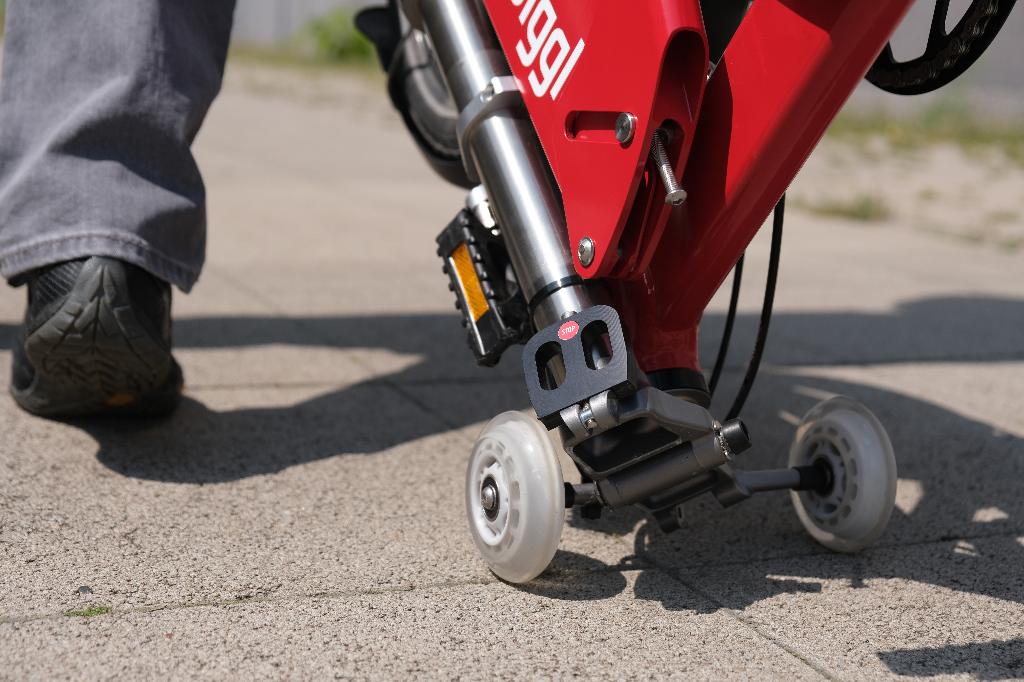

THE TROLLEY WHEELS
In trolley mode, the Kwiggle is easy to pull. Just like a trolley suitcase.
The trolley wheels are made extra large for this purpose, so that pulling of the folded Kwiggle is easy and pleasant everywhere, even on uneven terrain.
THE BRAKES
THE LIGHTING
The rear-light
The Spanninga Nr. 9 with reflector and battery convinces with its retro look.
THE LUGGAGE RACK
The rack is another highlight on the Kwiggle. We wanted to provide our customers with a solution for their existing Ortlieb bicycle bags without having to spend extra money on a separate luggage system. We have developed a rack that fits perfectly into the folding size, allows at least 10 kg load and weighs only 75 g.All current Ortlieb rear-wheel or Ortlieb front-wheel bags fit on the luggage carrier.
THE PEDALS
Quality made in Japan.
| Kwiggle features: | |
| Colors: | Various paint splashes in black |
| 3 gears at the back | 3-speed derailleur with front derailleur (7, 8 and 10 teeth) |
| If 6-speed selected: Schlumpf speeddrive with 2 gear steps in front. |
2 transmission gears in front in combination with 3-speed derailleur with front derailleur (7, 8 and 10 teeth). |
| Frame: | 7000 series aluminum and high strength stainless steel |
| Brakes and Brake Levers: | Tektro side-pull brake |
| Rims: | Rim: Aluminum wrought-alloy, made out of one piece |
| Tires: | Tires: Schwalbe Big Apple 12 Zoll with reflective stripes |
| Wheel guards: | SKS |
| Crank: | Miche Team CPT, 170 mm, LK 110mm |
| Chainring with chain guard | 7075-T6 aluminum, black anodized 46 teeth |
| Luggage carrier: |
for bike bag and slot for right pedal |

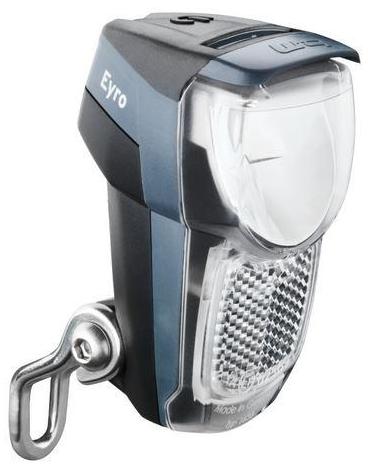

| Front light: | Busch+Müller, EYRO (30 Lux) with integrated rechargeable battery |
| Rear light: | Spanninga No. 9 with battery |
